AMG8833 IR 8*8 Infrared Thermal Imaging Camera Array Temperature Sensor
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above C$270.
-
Orders are processed and shipped from Toronto, Canada.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
Features:

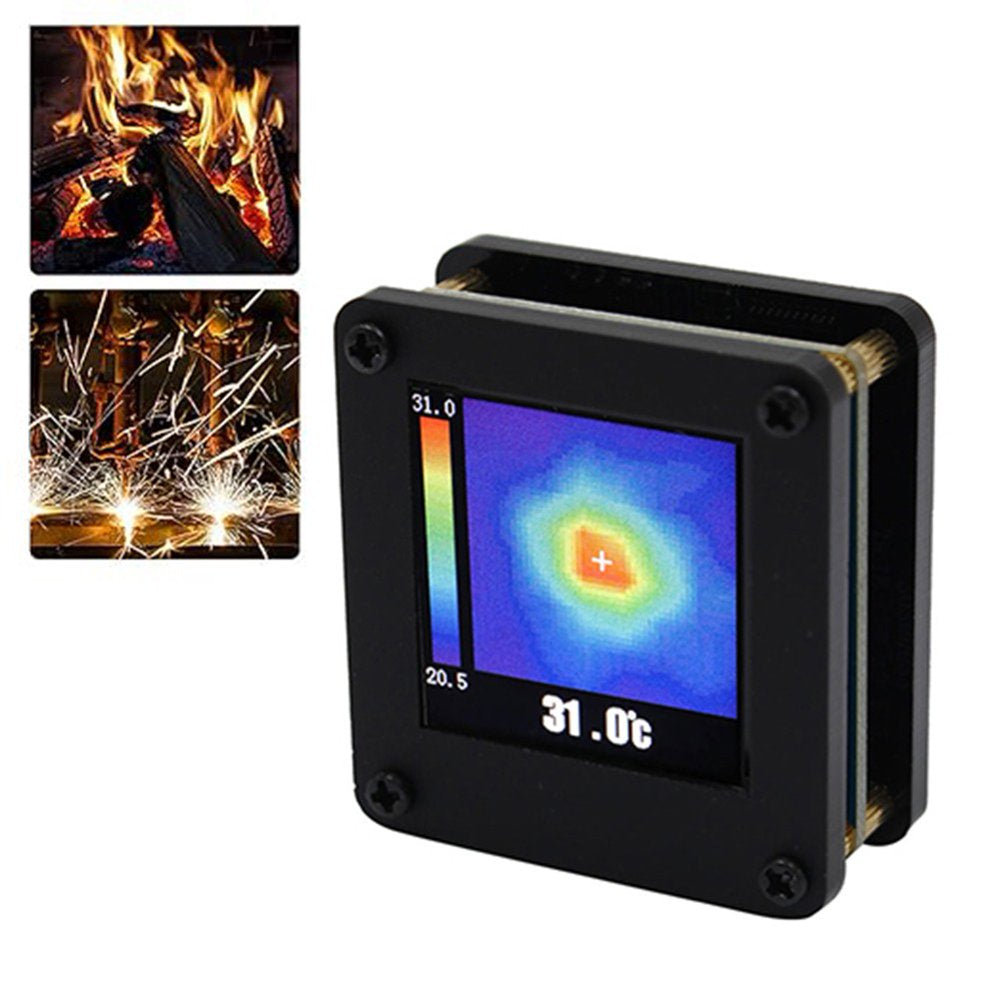

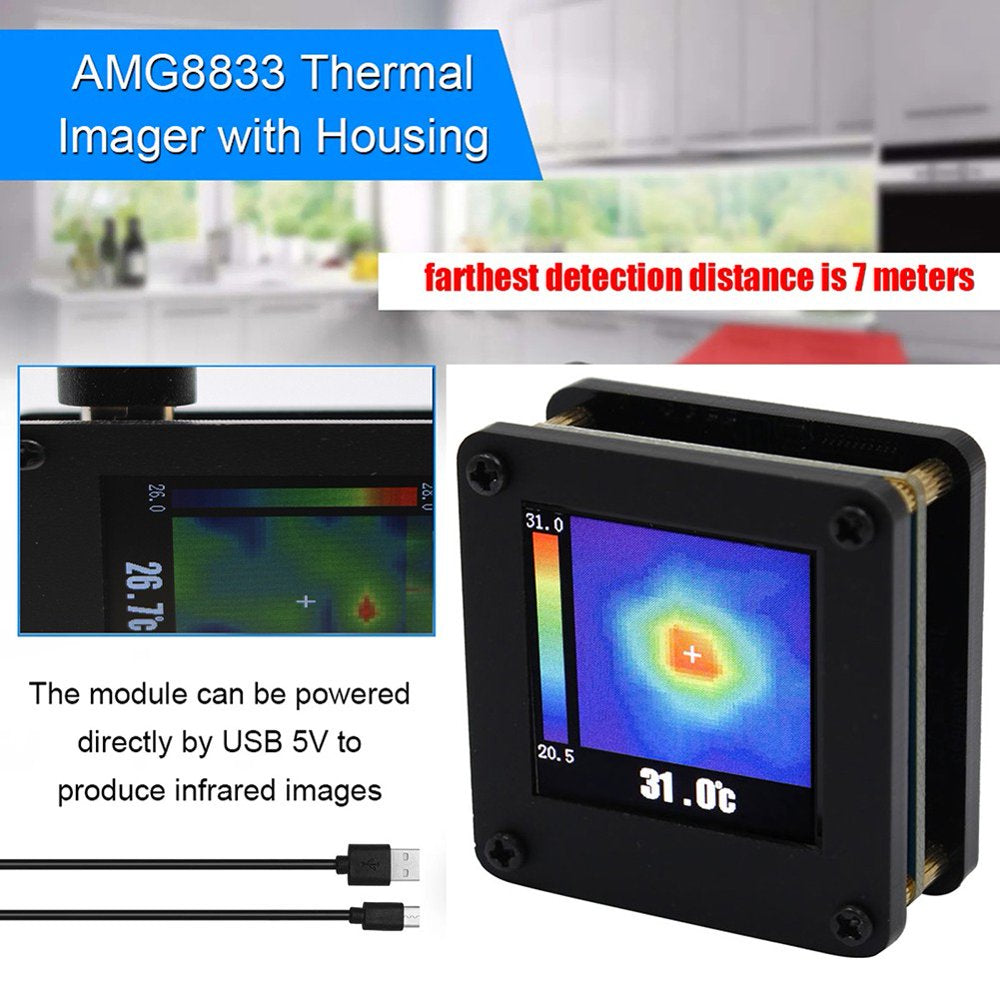

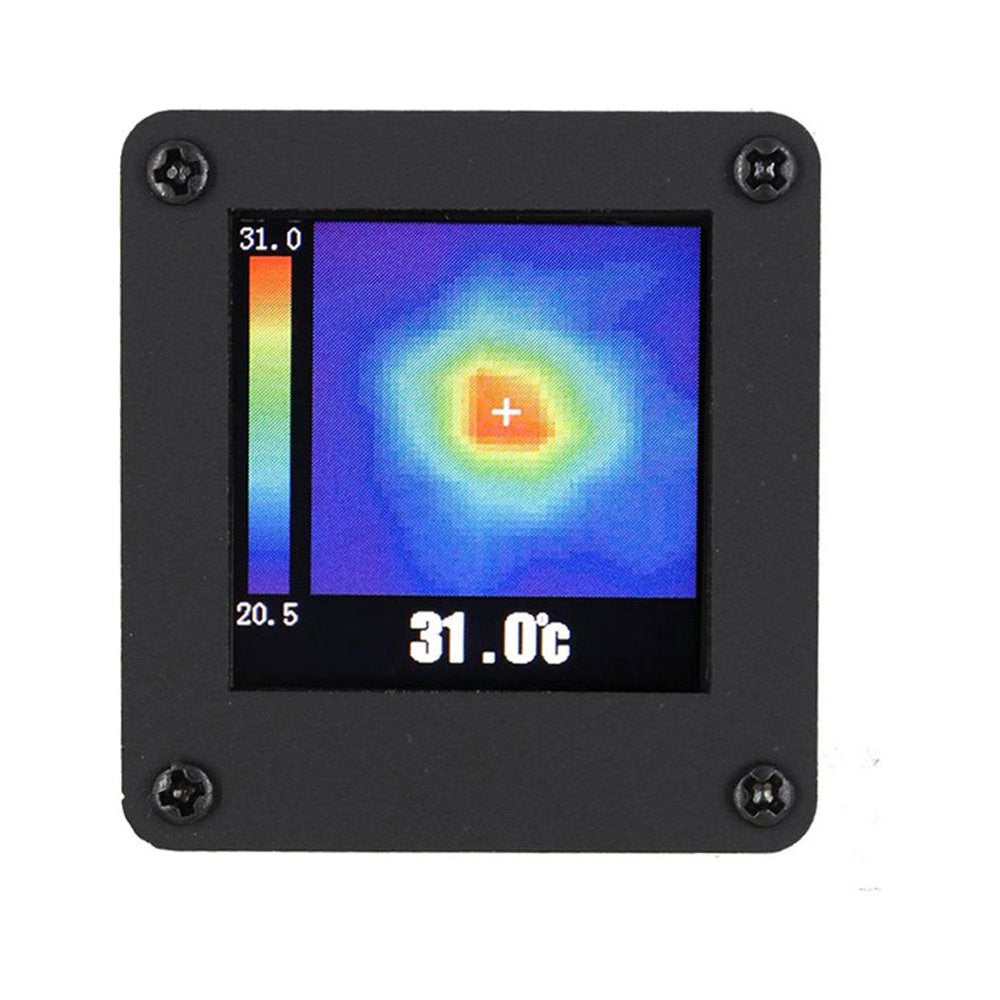

*The module can be powered directly by USB 5V to generate infrared images.

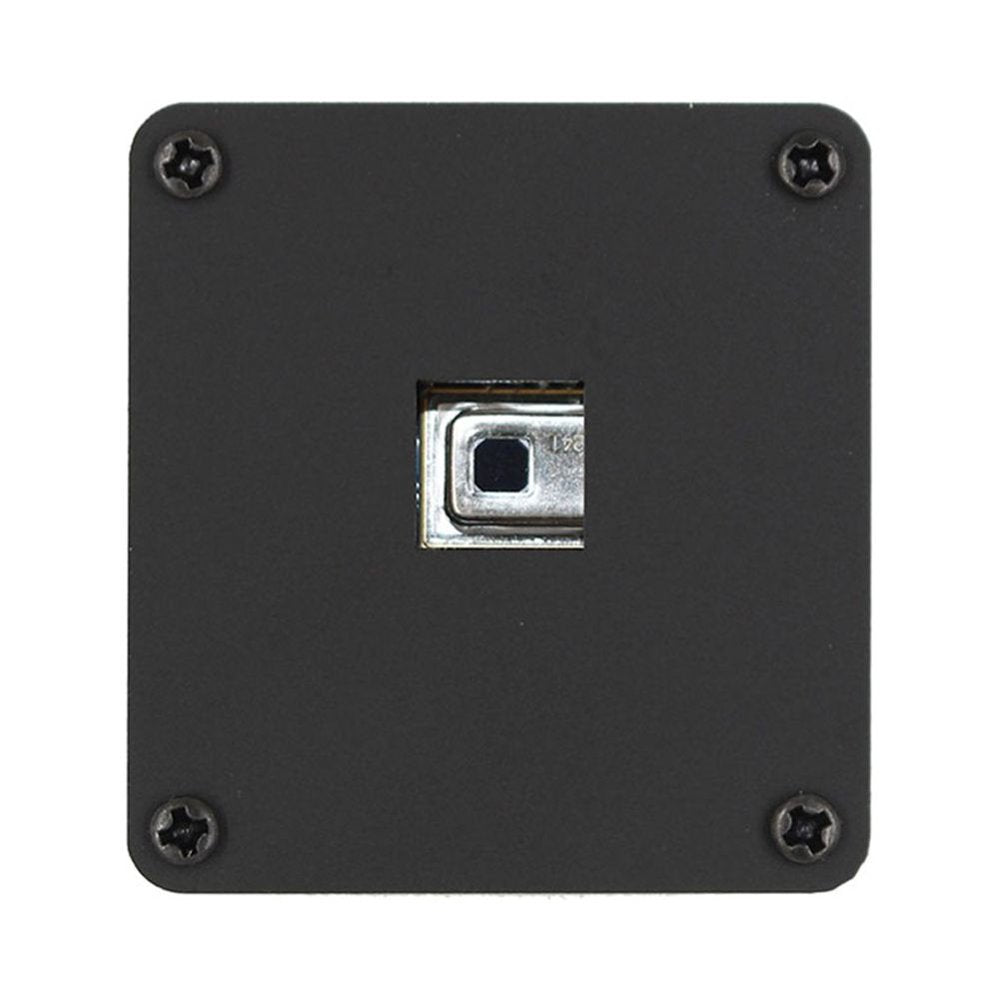

*Using AMG8833 infrared thermal sensor. The resolution is 8*8, and the maximum detection distance is 7 meters.

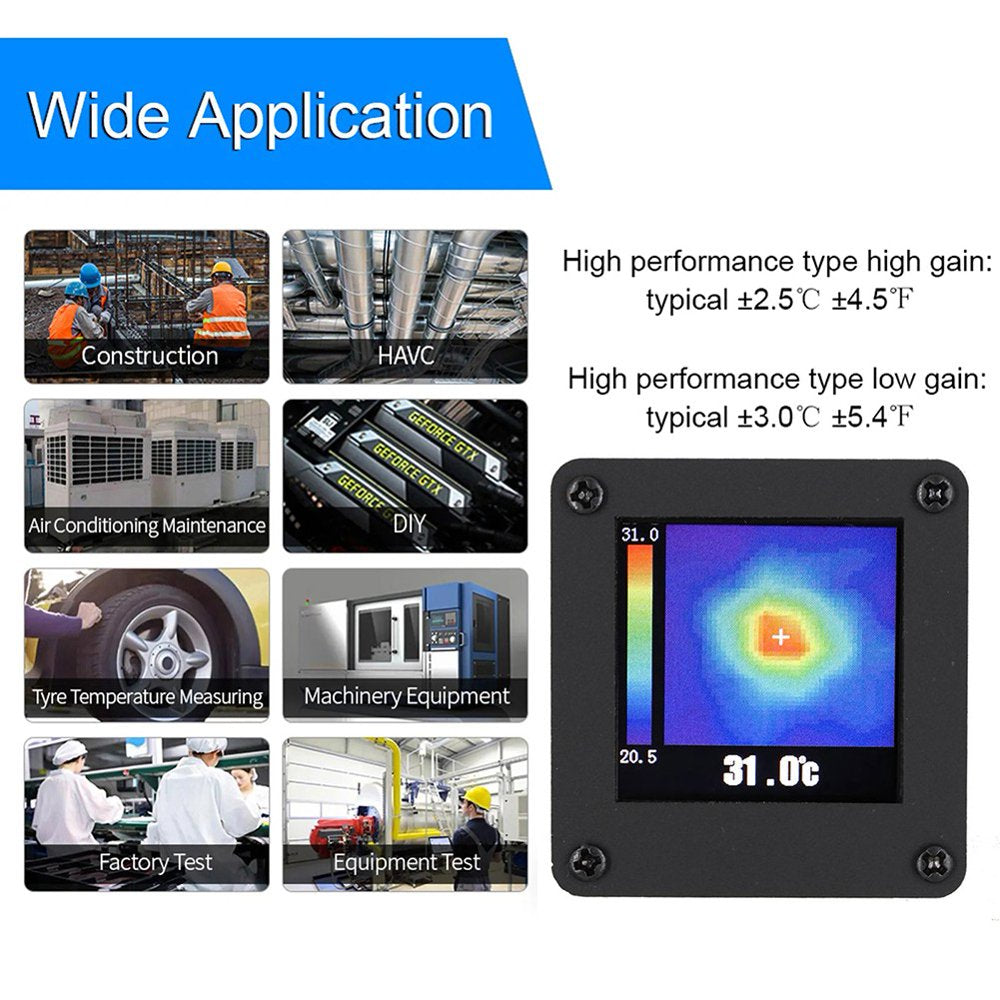

*Can be applied to the inspection of electronic products.
*Portable, compact, high-performance and easy to use.
Specification:
Material: PCB
Temperature accuracy:
High performance type high gain: typical ±2.5℃ ±4.5°F
High performance low gain: typical ±3.0℃ ±5.4°F
Human detection distance: 7m or less (reference value) 22.966 feet
NETD:
Typical value. 0.05℃ 32.900°F 1Hz
Typical value. 0.16℃ 32.288°F 10Hz
Viewing angle: typical 60°
Optical clearance: typical within ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (standby mode)
Creation time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time for stable output after setting)
Number of pixels: 64 (vertical 8 * horizontal 8 for Matrix)
External interface: 1²C (fast mode)
Frame rate: Typical 10 frames/second or 1 frame/second
Working mode: normal, sleep, standby (10 seconds or 60 seconds interval)
Output mode: temperature output
Calculation mode: no moving average or two moving averages
Temperature output resolution: 0.25℃/32.45℉
Number of sensor addresses: 2 (1²C slave address)
Thermistor output temperature range: 0℃~80℃ (32℉~176℉)
Thermistor output resolution: 0.0625℃/32.1125℉

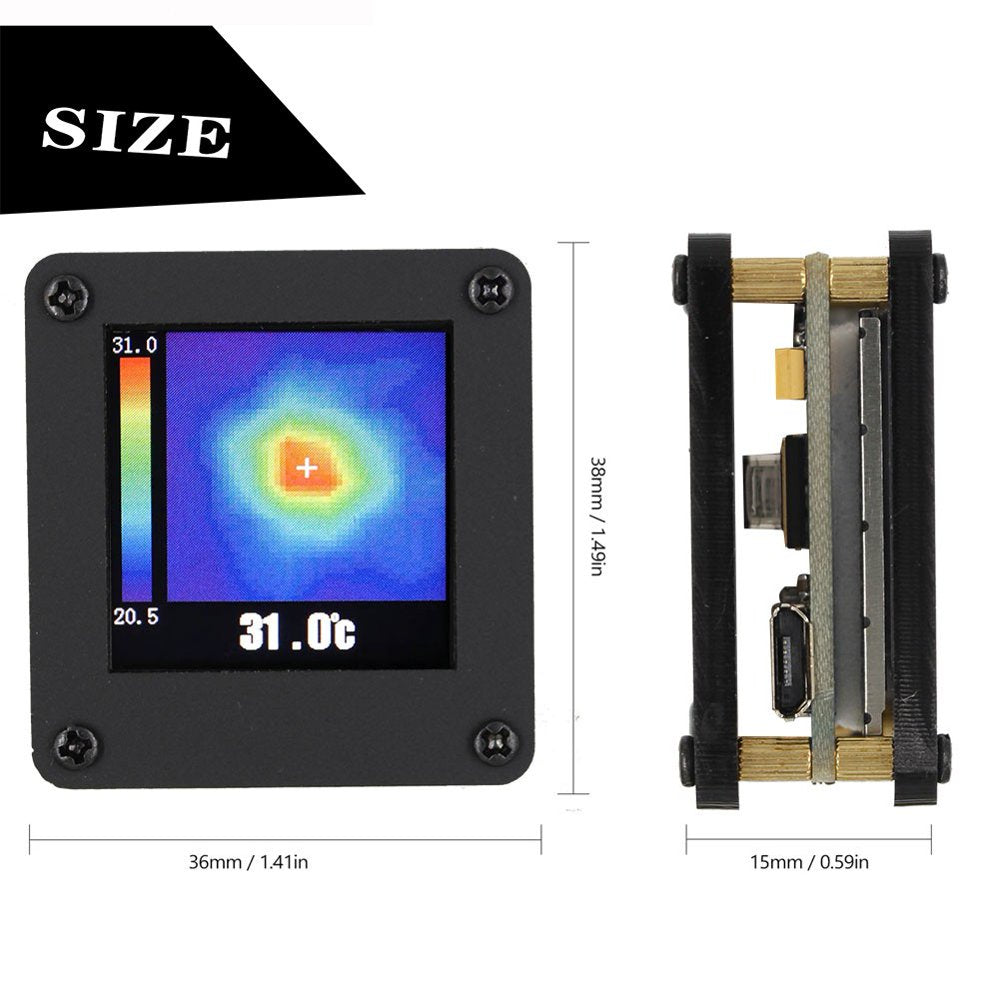

Product size: 38*36*17mm/1.5*1.4*0.7 inches
Product weight: 17 g / 0.6 oz
Packing size: 90*80*20mm/3.5*3.1*0.8 inches
Package weight: 19 g / 0.7 oz
packing list:

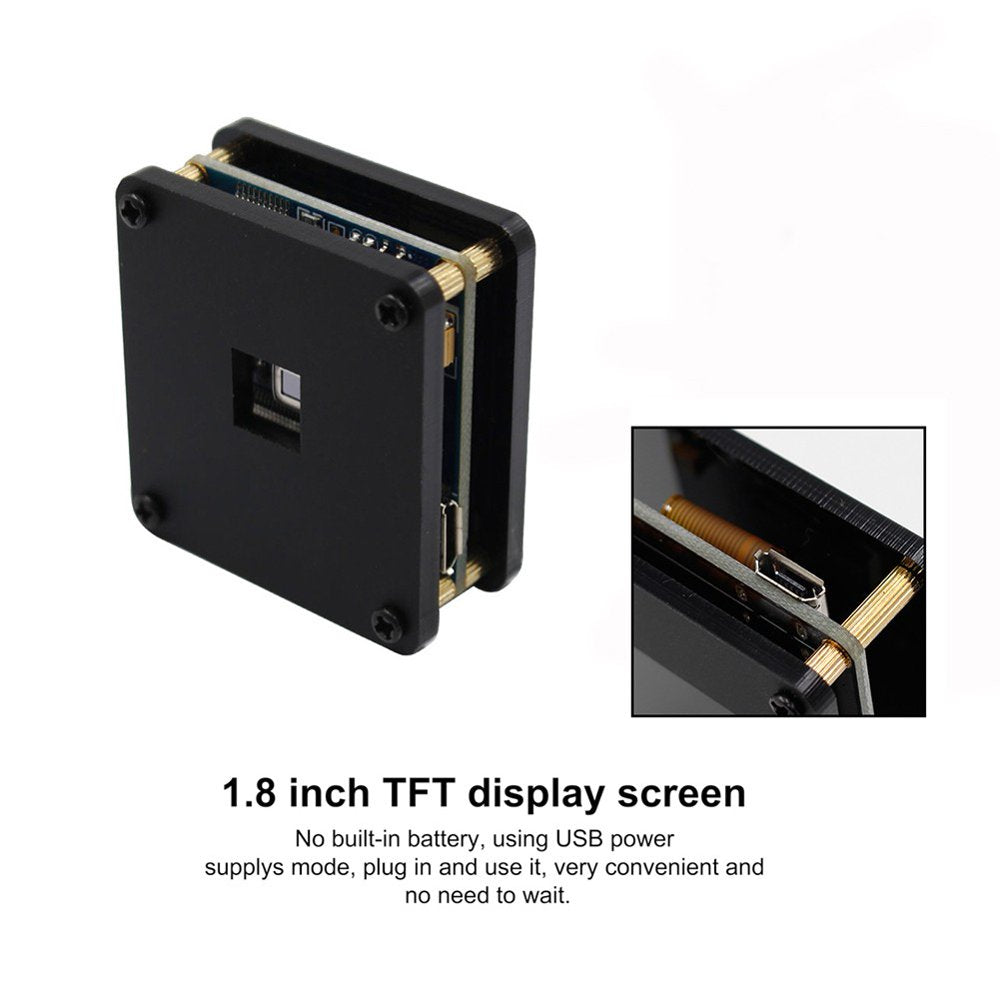

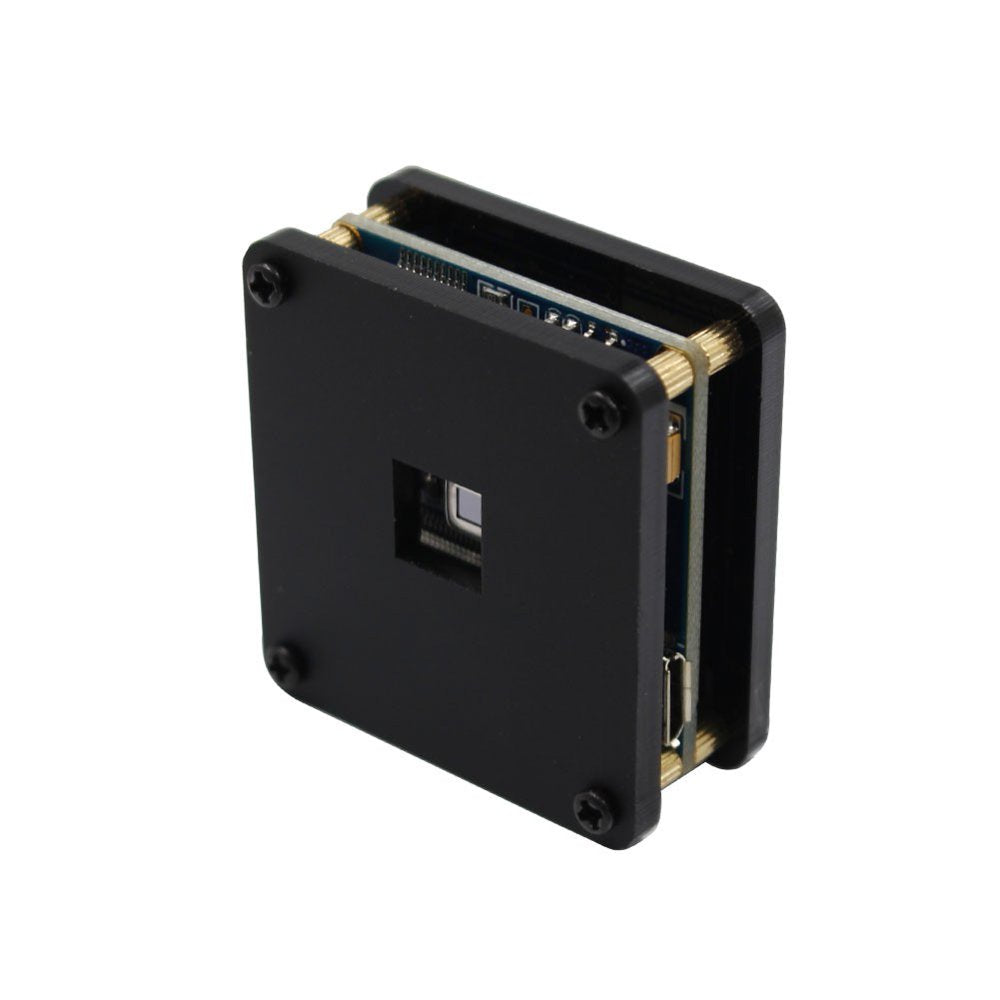

1 * AMG8833 thermal imager with housing
Notice:
USB cable not included, thank you for your understanding.
- The module can be powered directly by USB 5V to generate infrared images.
- Using AMG8833 infrared thermal sensor. The resolution is 8
- 8, and the maximum detection distance is 7 meters.
- Can be applied to the inspection of electronic products.
- Portable, compact, high-performance and easy to use. Specification: Material: PCB Temperature accuracy: High performance type high gain: typical ±2.5℃ ±4.5°F High performance low gain: typical ±3.0℃ ±5.4°F Human detection distance: 7m or less (reference value) 22.966 feet NETD: Typical value. 0.05℃ 32.900°F 1Hz Typical value. 0.16℃ 32.288°F 10Hz Viewing angle: typical 60° Optical clearance: typical within ±5.6° Current consumption: Typical 4.5mA (normal mode) Typical 0.2mA (sleep mode) Typical 0.8mA (standby mode) Creation time: Typical 50ms (time to enable communication after setup) Typical 15s (time for stable output after setting) Number of pixels: 64 (vertical 8
- horizontal 8 for Matrix) External interface: 1²C (fast mode) Frame rate: Typical 10 frames/second or 1 frame/second Working mode: normal, sleep, standby (10 seconds or 60 seconds interval) Output mode: temperature output Calculation mode: no moving average or two moving averages Temperature output resolution: 0.25℃/32.45℉ Number of sensor addresses: 2 (1²C slave address) Thermistor output temperature range: 0℃~80℃ (32℉~176℉) Thermistor output resolution: 0.0625℃/32.1125℉ Product size: 38
Product Dimensions:
1.58 inches x 5.52 inches x 3.94 inches.
Item Specifications:
| Features | Household |
| Assembled Product Dimensions (L x W x H) | 5.52 x 3.94 x 1.58 Inches |
